Bonding and grounding is the approved and best way to drain-off or neutralize static charges in drum storage areas; during truck, rail car, and barge transfers; and during aircraft fueling. Lind Equipment has the bonding and grounding products to help you in all of these situations. We offer a wide variety of grounding clamps to meet all static grounding and bonding applications

HAND CLAMPS

REB

  • Cast aluminum construction with two hardened stainless steel points

  • Industry-standard for bonding and grounding containers, drums, totes, and machinery

  • 55 lb spring pressure helps to ensure proper metal contact through paint and corrosion build-up

  • FM approved

  • Can take up to #6 cable

  • Clamp opens to 5/8”

VUD-100

  • Cast aluminum construction with two stainless steel points

  • Special application clamp designed for drums with large, rolled rims

  • Quick-release harness helps open the clamp when pulled by the cable, and minimizes strain on cable connection

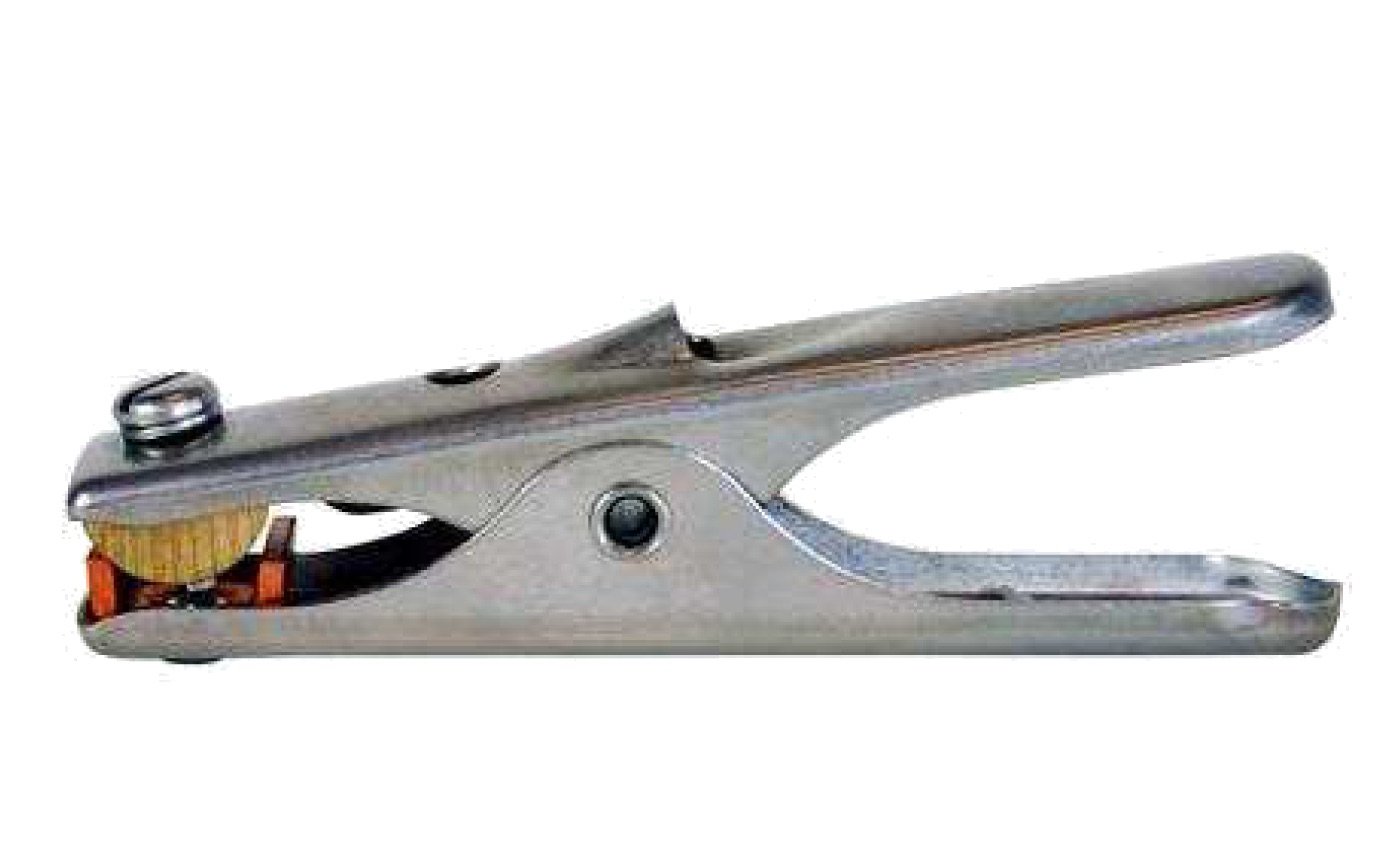

RSS

  • Stainless steel construction with two stainless steel points and indented surface

  • Excellent for grounding drums and other small vessels. Ideal for use in the pharmaceutical and food industries.

  • Stamped stainless steel composition makes clamp light and easy to handle

  • Can take up to #6 cable

  • Cast aluminum construction with plated steel jaws

  • Aviation industry standard for bonding and grounding aircraft and refueling vehicles

  • Ideal for attaching to landing gear, posts, ground balls, ground rods and other curved unpainted surfaces

  • Complies with Mil Spec M83413/7-1

  • Clamp opens to 13/16”

  • Can take up to #6 cable

ALS10A

ALS10B

  • Cast aluminum construction with plated steel jaws

  • Intermeshing jaws are designed to attach to FIBC (Flexible Intermediate Bulk Containers)

  • Engineered specifically to ground “Type C” Super Sacks

  • Can take up to #6 cable

  • Cast aluminum construction, available with stainless steel points or brass “cup” points (for attachment to ground balls)

  • Large, heavy-duty clamp designed for grounding railcars, tanker trucks, barges, and large vats

  • Equipped with a quick release harness, designed to open the clamp automatically in case the operator forgets to detach the clamp prior to the vehicle’s departure

  • Clamp opens at 1 1/2”

  • This GAT clamp comes in four configurations to meet your bonding and grounding requirements

GAT Clamp Series

GAT-P

• Three stainless steel points (one on one side, two on other side).

• Accepts cables 3/32” - 3/8” O.D. (maximum #2 cable size)

GAT-PIP

• GAT-P with isolated stainless steel point on one side, for all metal surfaces

GAT-PIP1

• GAT-P with isolated brass “cup” point on one side, fits ground balls, as well as metal surfaces

GAT-PIP2

• Two isolated brass “cup” points (one on each side). Ideal for ground ball applications

G40 Clamp Series

  • Cast bronze construction, available with stainless steel points or brass “cup” points (for attachment to ground balls)

  • Large, rugged clamp designed for grounding railcars, tanker trucks, barges, and large vats

  • Equipped with a quick-release harness, so tension will force the clamp to release automatically if it has not been manually removed prior to vehicle departure

  • Clamp opens to 1 1/4”

  • This G40 clamp comes in four configurations to meet your bonding and grounding requirements

G40-PCU

• Accepts cables 3/16” - 3/8” O.D. (maximum #2 cable size)

• Three stainless steel points (one on one side, two on other side), as well as grooves to allow for ground ball connection

G40-PM

• Accepts cables 1/4” O.D. (maximum #6 cable size).

• Three stainless steel points (one on one side, two on other side)

G40-PMIP1

• G40-PM with isolated brass “cup” point on one side, fits ground balls

G40-PMIP

• G40-PM with isolated stainless steel point on one side
