PIPE CLAMPS & C-CLAMPS

Heavy-Duty Pipe Clamps

  • Cast bronze construction adjustable pipe clamps

  • Rugged design for semi-permanent connections

PART NO. PIPE RANGE (I.D) MIN. PIPE O.D MAX. PIPE O.D
JR-150-6 1/2” to 1” 5/8” 13/8”
JR-150-7 11/4” to 2” 13/8” 23/8”
JR-150-30 2” to 4” 21/8” 41/2”
JR-150-50 41/2” to 6” 4” 65/16”

  • Plated steel, cast bronze and malleable iron constructions

  • Designed for easy, semi-permanent connections for various static grounding applications

Heavy-Duty C-Clamps

EP-1

  • Zinc Plated Malleable Iron

  • 1” beam clamp

  • Low cost alternative to EP-1

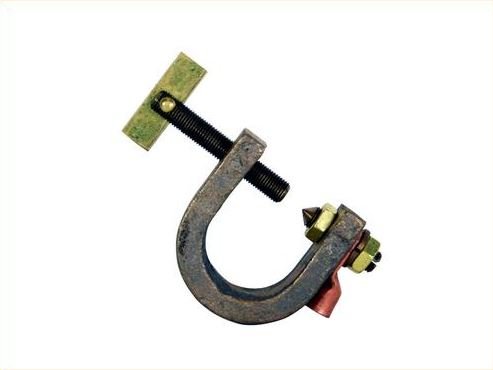

EP-3

EP-4

  • Cast Bronze

  • Large clamp; opens to 11/4”

  • For larger drums and vessels

2178

  • Plated Steel

  • Large clamp with steel point; opens to 11/2”

  • Larger version of EP-1

EP-5

  • Plated Steel

  • Large clamp with steel point; opens to 11/2”

  • Larger version of EP-1

  • Cast Bronze

  • Oversized clamp; opens to 21/2”

  • For marine vessels/ rail cars

  • Plated Steel

  • Small clamp with stainless steel point; opens to 3/4”

  • For bonding drums to drum racks

EP-2
